The world class Nanodac Controller and Recorder with 50MB flash memory, graphical recording, PID control and
set-point programmes!

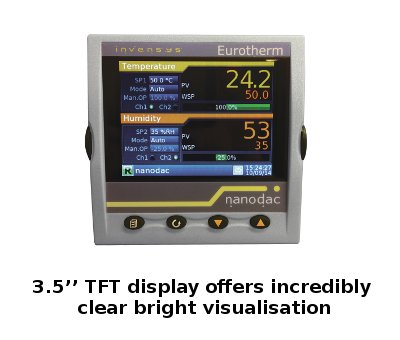

Crystal Clear Display

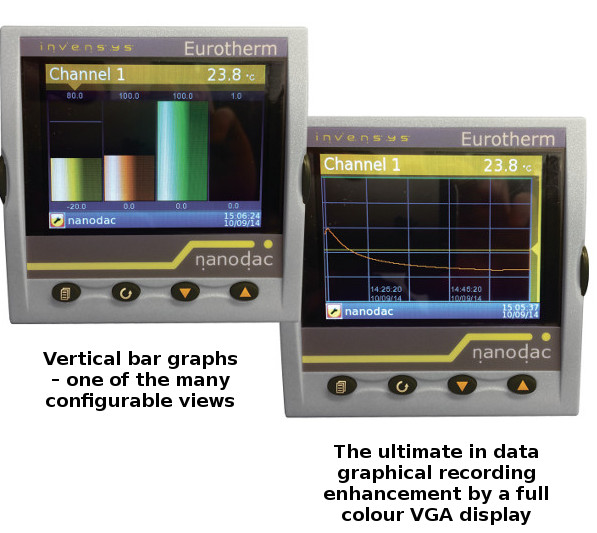

Full colour, 1/4 VGA, 320 x 240 pixel display. The Nanodac recorder has a variety of ways in which you can view your data - bar graph, trend, numeric values. The push-buttons below the display also enable scrolling between configured views.
The Programmer
As well as stability testing our fully programmable cabinet is capable of cyclic or diurnal testing. The Nanodac offers an option Dual Programmer supporting up to 100 programmes locally with each programme supporting 25 segments. There is also a remote access feature to retrieve data via FTP and USB memory stick.
Programme Editor
Simple set up of set-point profiles. Store, retrieve and download files. The set-point programme editor within iTools provides a simple method of configuring set-point profiles and programmable event outputs. Programmes can be edited live online with the controller, or offline for download. Storage of profiles is limited only by the amount of disk space available on the PC.
Supported by PC based tools
The 'Review' software is an efficient and secure library for data from which charts can be reviewed, printed and exported to other PC packages as required. Automatic data archiving to removable USB memory stick (up to 8GB), remote data archiving over Ethernet network using FTP, plus automatic data archiving directly into 'Review' database and remote visuals to your PC via Webserver.
Please CLICK HERE to view or download our brochure

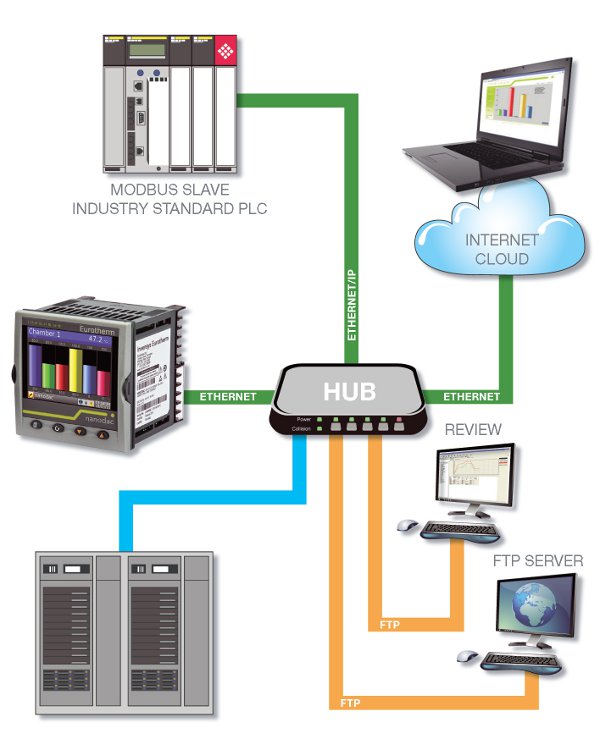

Ethernet / IP Connectivity
The Nanodac Controller / Recorder can also be supplied with Ethernet / IP connectivity, providing support to either client or server modes of operation.
Data Security
The Nanodac 'Review' software maintains the integrity of secure, binary files (UHH format) created by the Nanodac Recorder and can be configured to pull data over the network and provide a third data back up route.
The Nanodac Controller and Recorder is featured in our fully programmable cabinet.
CLICK HERE for details.
